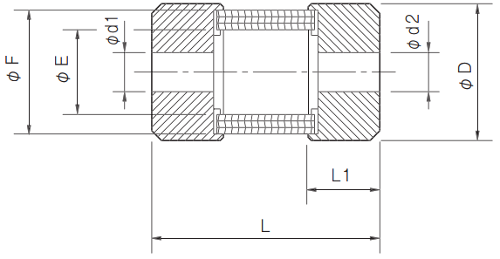

Line Drawing - Click to Enlarge
Product Details
| Configuration |
| Bore Size d1 (small diameter) |
|
| Bore Size d2 (large diameter) |
|
| Outer Diameter D (in) |
2.953 |
| Length (in) |
5.906 |
| L1 (in) |
1.89 |
| Mass (lb) |
7.716 |
| Max. Rotation Speed (min-1) (rpm) |
4,500 |
| Misalignment Angular (degrees) |
3 |
| Misalignment Axial (in) |
+ 3.2 |
| Misalignment Parallel (in) |
0.047 |
| Torque Max. (ft lb) |
325 |
| Nominal Torque (ft lb) |
162.3 |
