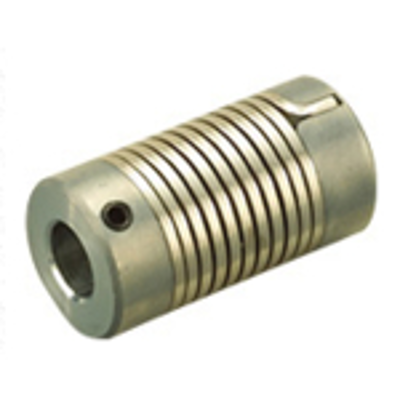

Specifications

• Nominal Torque (Nm): 3.0
• Maximum Torque (Nm): 1.5
• Bore Range (mm): 7 - 14
• Outer Diameter (D) mm: 26.00
• Length (L) mm: 50
• Length L1 (mm): 17.0
• Length L2 (mm): N/A
• Dimension F (mm): 4.5
• Misalignment Angular (degrees): 8
• Misalignment Axial (mm): ±1.0
• Misalignment Parallel (mm): 1.2
• Maximum RPM: 3,000
• Mass (kg): 0.13
