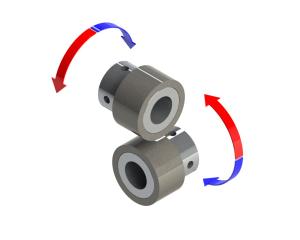

CLC Magnetic Couplings - Type DD

Click image to enlarge

Contactless Link - Orthogonal Cylinder Type

The CLC Series Type DD coupling features an orthogonal axis miter structure and bonded magnet that is compact and adjustable to narrow pitches.

  • Maximum transmission torque: 0.24Nm
  • Bore size ranges: 0.315” ~ 0.591” (8mm~15mm)
  • Max Rotational Speed: 3,000 RPM

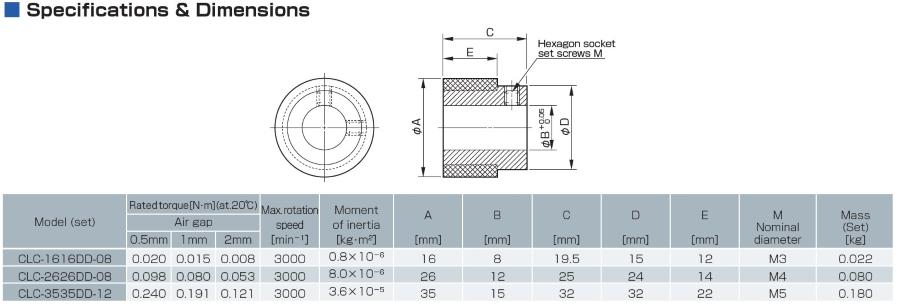

CLC - Type DD Specifications


CLC - How to Order
