CLC Magnetic Couplings - Type BC

Click image to enlarge

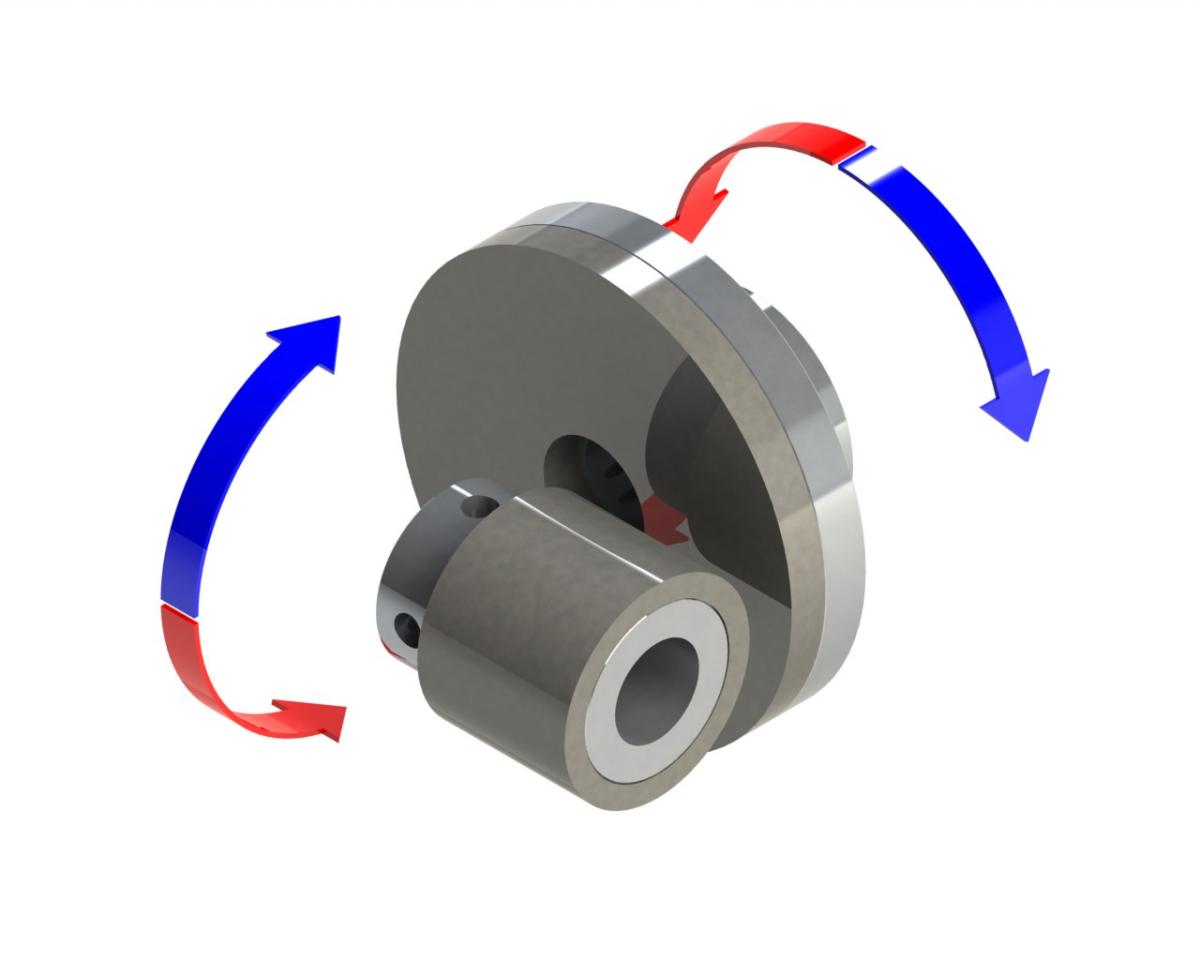

Contactless Link - Cylinder x Orthogonal Disk Type

The CLC Series Type BC has an orthogonal axis miter structure and is adaptable to narrow pitches. Can be used in cylinder-to-cylinder, cylinder-to-disc or disc-to-disc configurations.

  • Maximum transmission torque: 0.623Nm
  • Bore size ranges: 0.394” ~ 0.984” (10mm~25mm)
  • Max Rotational Speed: 2,600 RPM

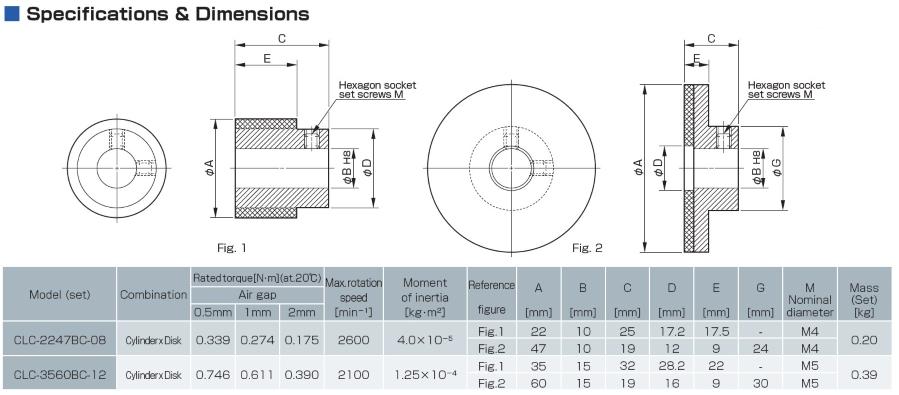

CLC - Type BC Specifications CLC - How to Order
