CLC Magnetic Couplings - Type BB

Click image to enlarge

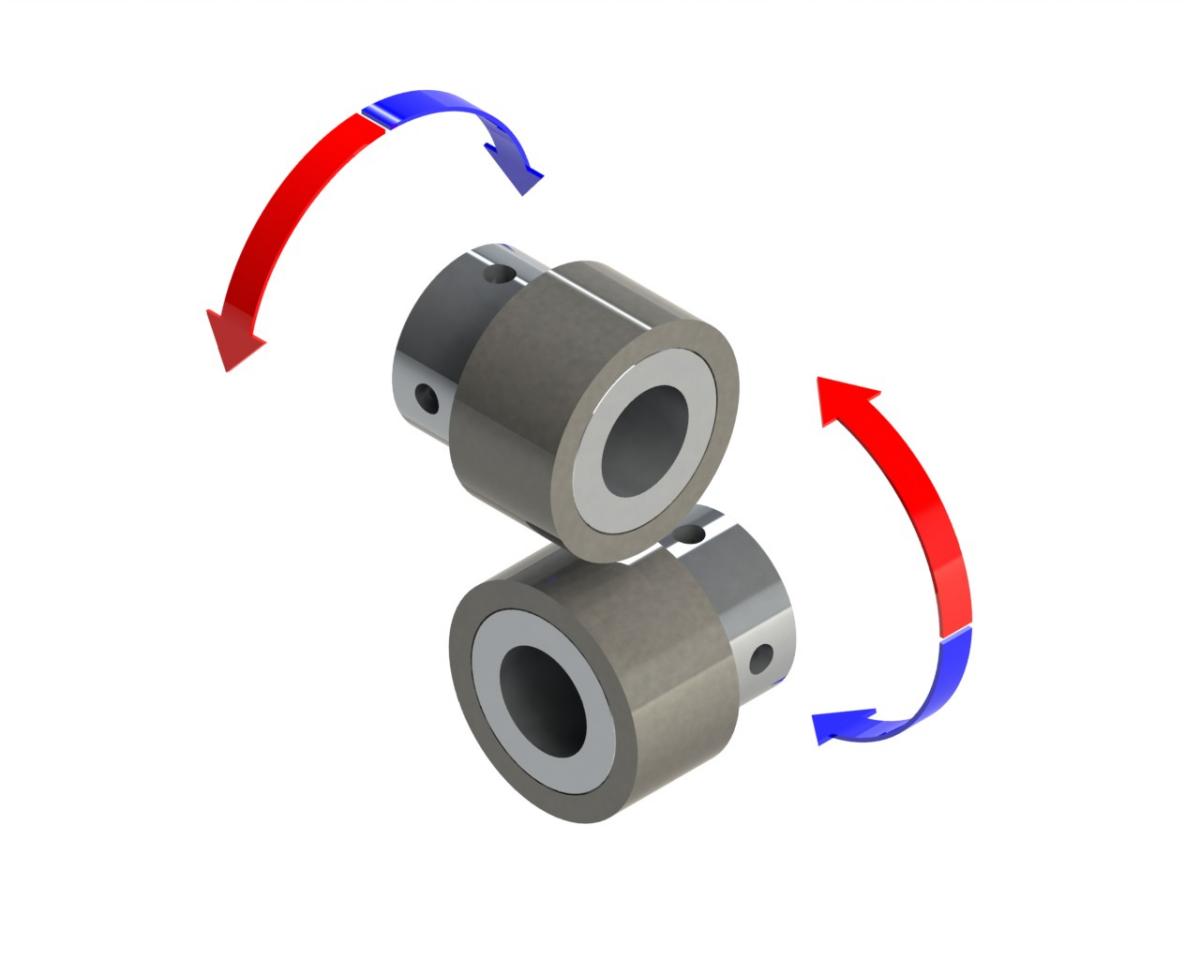

Contactless Link - Orthogonal Cylinder Type

The CLC Series Type BB coupling features an orthogonal axis miter structure that is compact and adjustable to narrow pitches.

  • Maximum transmission torque: 1.79Nm
  • Bore size ranges: 0.394” ~ 0.984” (10mm~25mm)
  • Max Rotational Speed: 3,000 RPM

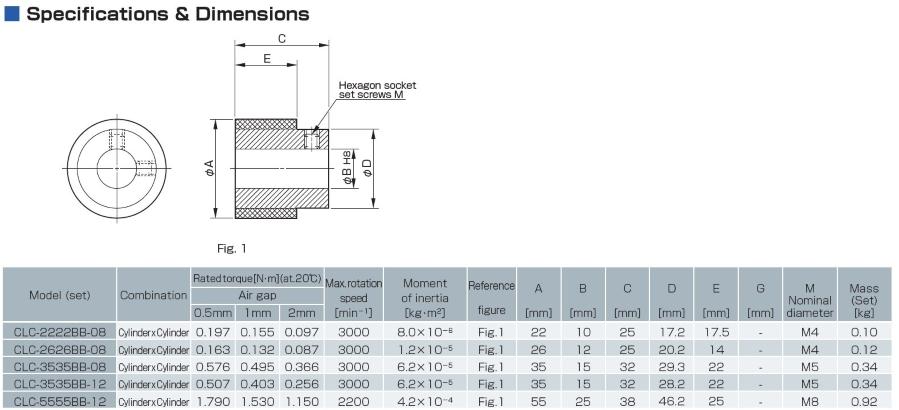

CLC - Type BB Specifications CLC - How to Order
