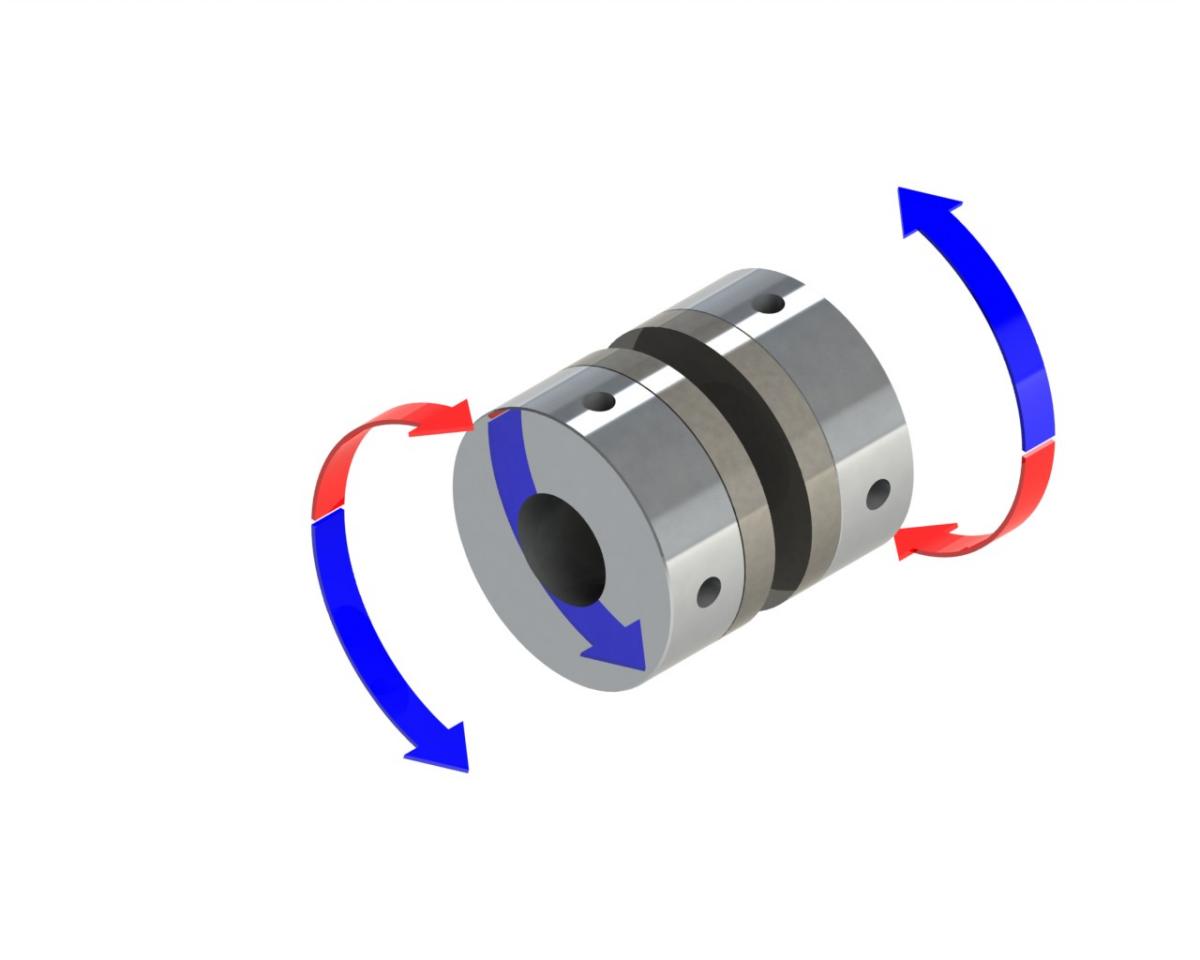

CLC Magnetic Couplings - Type AA

Click image to enlarge

Contactless Link - Standard Coaxial Type

The CLC Series Type AA has a basic butt shaft structure and provides easy attachment, detachment and centering.

  • Maximum transmission torque: 15.79Nm
  • Bore size range: 0.315” ~0.590” (8mm~15mm)
  • Max Rotational Speed: 3,000 RPM

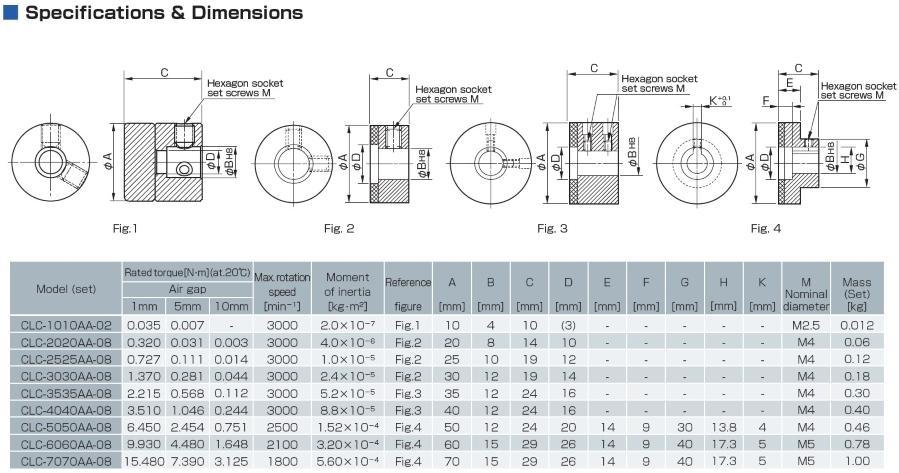

CLC - Type AA Specifications
CLC - How to Order
