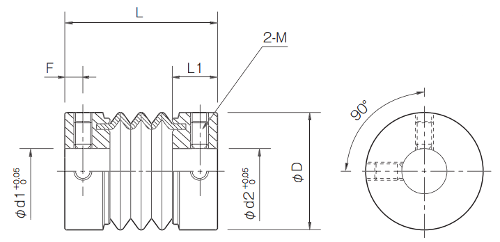

Line Drawing - Click to Enlarge
Product Details
| Configuration |
| Bore Size d1 (small diameter) |
|
| Bore Size d2 (large diameter) |
|
| Outer Diameter D (in) |
1.024 |
| Length (in) |
1.339 |
| L1 (in) |
0.39 |
| Mass (lb) |
0.057 |
| Max. Rotation Speed (min-1) (rpm) |
1 |
| Misalignment Angular (degrees) |
10 |
| Misalignment Axial (in) |
0.5 |
| Misalignment Parallel (in) |
0.020 |
| Torque Max. (ft lb) |
1 |
| Nominal Torque (ft lb) |
0.5 |
