BXR-06-20

Part Number: BXR-06-20
Quantity:
bxr-20 place_order-bxr-20




Specifications

  • Static Friction Torque (Nm): 5.0
  • Maximum RPM: 5,000
  • Outside Diameter (A) mm: 83.50
  • Bolt Circle Diameter (B) mm: 76.00
  • Armature Pull-in Time (seconds): 0.05
  • Backlash: 0.5
  • Inner Diameter of Stator (C) mm: 82.00
  • Overall Height (K) mm: 25.0
  • Mass (kg): 1.00
  • Total Braking Energy (J): 2×10⁵
  • Coil Voltage (V): 24
  • Coil Resistance (ohms): 33

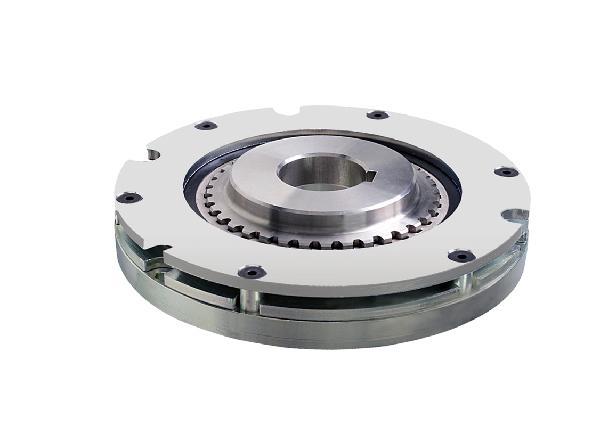

Click image to enlarge

BXR-06-20

Category: Updated BXR Model Brake


Adobe 3D PDF help

Product Details

Configuration
Static Friction Torque TC
Coil Voltage (V)
Bore Dia d H7 (mm)
