Electrically Actuated Clutches Direct Mounting Types 101-__-13

Click image to enlarge

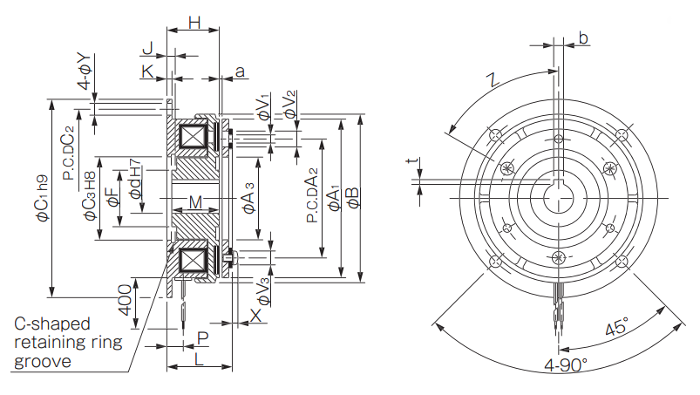

The 101 model Direct Mounting Type 13 armature is intended for direct-mounting to a customer-supplied sprocket, pulley, or hub.  The armature includes a bolt pattern for this purpose. Please refer to the instruction manual during installation, as this device requires a pre-set air gap along with and perpendicularity / run-out tolerances for proper operation.

101-13
