ALS-014-R Clamp

Part Number: ALS-014-R Clamp
Quantity:
Traditional sintered version available for all quantities and sizes.
New Machined Steel version available for quantities over 50-pcs.  Contact factory for more information.

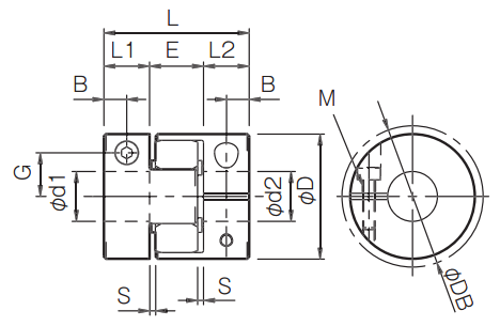

ALS 014 Clamp Diagram
ALS 014 Clamp Diagram

Specifications

  • Nominal Torque (Nm): 2.0
  • Maximum Torque (Nm): 4
  • Bore Range (mm): 3 - 6.35
  • Outer Diameter (D) mm: 14.00
  • Length (L) mm: 22.00
  • Width (S) mm: 1.00
  • Dimension B (mm): 3.50
  • Dimensions L1 (mm): 7.0
  • Dimensions L2 (mm): 7.0
  • Maximum RPM: 34,100
  • Mass (kg): 0.007
  • Misalignment Angular (degrees): 1
  • Misalignment Axial (mm): 0 ~+ 0.6
  • Misalignment Parallel (mm): 0.10
